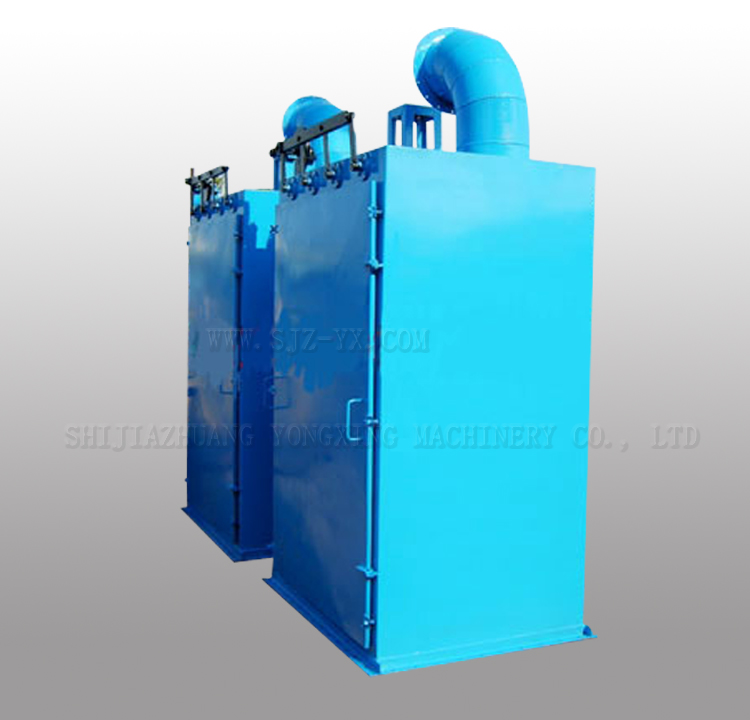

Product Name: HD bag filter

1、 Overview:

HD series single machine dust remover is specially designed for dust removal of cement top silo, silo bottom, belt conveyor and local dust source. It can also be used for local dust source dedusting in other industries. The utility model has the advantages of small volume, large processing air volume, compact structure, convenient and reliable use, etc. The dust removed from the dust remover can be directly discharged into the bin or directly onto the belt. The dust containing gas enters the dust remover from the lower part of the dust remover. After filtering by the filter bag, the clean air is discharged by the induced draft fan. After the dust remover works for a period of time, the dust on the filter bag increases gradually, which causes the resistance of the filter bag to rise. Therefore, it is necessary to clean the dust. After the cleaning, it will work normally.

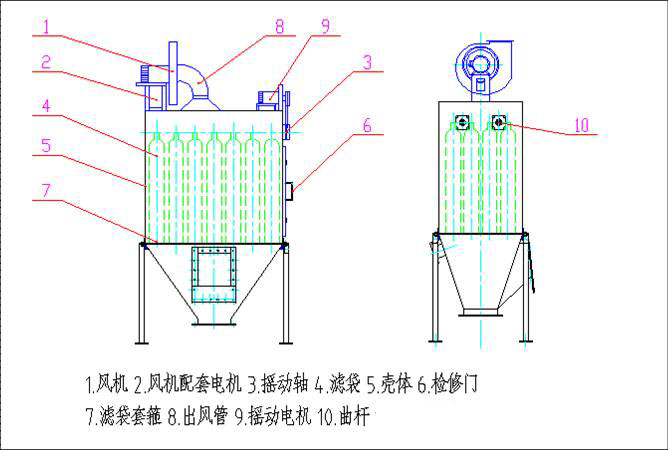

2、 Working principle:

The dust containing gas enters the box through the inlet of the dust remover and is filtered by the filter bag. The dust is left on the inner surface of the filter bag. The purified gas enters the fan through the filter bag and is inhaled by the fan and directly discharged into the room (or discharged to the outside through the pipe). With the increase of filtering time, the dust adhered to the inner surface of the filter bag is also increasing, and the resistance of the filter bag is rising accordingly, which affects the dust removal effect. The automatic dust removal is used to swing the dust removal device regularly or manually. After shutdown, the dust will swing automatically for tens of seconds to shake off the dust on the inner surface of the filter bag, and the dust will fall to the ash hopper, drawer or directly on the conveyor belt.

3、 Scope of application:

This series of products are widely used in cement industry, but also in casting industry, ceramic industry, glass industry, grinding wheel manufacturing, chemical products, mechanical processing and other industries. Compared with heavy metal chips, sand for casting and medium proportion dust, such as cement, ceramics, gypsum powder, asbestos powder, carbon powder, pigment, bakelite powder, plastic powder, etc., as well as wood processing dust with light proportion, the product has good dust removal effect, and the emission concentration can meet the national emission requirements.

Technical parameters：
